DC / AC 1000VA Sine Wave Inverter Flush Mounting Power Supply AC Bypass Input

Name: DC AC 1000VA Sine Wave Inverter Flush Mounting Power Supply AC Bypass Input
Brand: ESTEL
Price: 715 USD

Brand Name : ESTEL

Model Number : GPDA1000VA-F

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : 715-4286 usd

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 2,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Rated Capacity : 1000VA

Voltage input : 40 - 60 Vdc

Output voltage : 220VAC

Operating temperature : -40ºC to +75 ºC

Application : telecom

Type : Telecom Rectifier

Contact Now

AC Bypass input RS485 Communication Function DC / AC 1000VA Sine Wave Inverter Flush Mounting Power Supply

1. Product Description

GPDA1000VA-F is one kind of two outputs, with AC bypass input, with 485 communication function DC / AC 1000VA sine wave inverter flush mounting power supply, the entire power supply using the latest circuit design, compact structure, reliable performance, high output efficiency. Entire power in strict accordance with safety requirements designed to meet the IT equipment safety standards.

2. Electrical Specifications

Input
Parameter		Min.	Typical	Max.	Unit	Note
DC input	DC operating voltage range	40		60	Vdc
	Input rated voltage		48		Vdc
	Input Rated Current			30	A	Rated input, rated output
	Power input Max Surge Current			45	A	≤ 150% of rated current
AC input	AC operating voltage range	175		265	Vac
	Input rated voltage		220		Vac
	Input Rated Current			5	A

Export
Parameter		Min.	Typical	Max.	Unit	Note
The inverter output	Rated output voltage		220		Vac	Enter the full voltage range
	Rated output current		4.6		A
	Output voltage accuracy			±5	%	Enter the full voltage range
	Rated output frequency	49	50	51	Hz
	Rated Capacity			1000	VA
	Rated output power			1000	W
	Overall efficiency	85			%	Rated operating conditions
	Output power factor	0.8				Rated operating conditions
	Dynamic transient recovery time			60	ms
	Waveform	Sine wave THD <3% (linear load)
	Waveform	Sine wave THD <8% (linear load)
	Overload	105~ 125% for not less than 10 minutes to 125 to 150% for not less than 10 seconds.
	Output current crest factor	3: 1
	Output	Two AC output
AC bypass output	Output voltage range	175		265	Vac	With the AC input voltage changes
	Rated output voltage		220		Vac
	Rated output current			5	A
	Switch to mains inverter output time			10	ms	Rated load
	Mains to inverter output time			10	ms	Rated load
	Output	Total output of the inverter, the inverter when an input under voltage, overvoltage, fan failure, over-temperature protection, switching to bypass output.

Protection
Parameter		Min.	Typical	Max.	Unit	Note
Inverter part	DC input voltage protection point	36			Vdc	Enter under voltage protection, the inverter output bypass switch.
	DC input voltage recovery point			40	Vdc	Achieve recovery value, one minute to restore the inverter output.
	DC input voltage recovery hysteresis	2			Vdc
	DC input voltage protection point			66	Vdc	Enter overvoltage protection, the inverter switch to bypass the output.
	DC input overvoltage recovery point	60			Vdc	Achieve recovery value, one minute to restore the inverter output.
	DC input overvoltage recovery hysteresis	2			Vdc
	Input over current protection	Power supply with input over current protection, can not be automatically restored.
	Over Temperature Protection	Power supply with over-temperature protection. When inside the main heat sink temperature is too high, over-temperature protection point reached, the inverter output bypass switch, temperature hysteresis of 10℃ or so.
	Anti-reverse protection	Power supply with input anti-reverse protection. When reversed, the power does not work, and no damage.
	Short circuit protection	Power supply with short circuit protection. When the power fails short intervals of one minute start time, 6 minutes lift failure, can be recovered. Long-short, the power shutdown, the short is removed, you can manually re-boot after work.
	Output over current protection	Power supply with over current protection. Detect over current, output power is turned off, every one minute start time, when the load back to the ratings, self-recovery. Long-term overload, power off, you can manually reboot after work.
	Alarm (buzzer alarm)	DC input error, overload, short circuit, inverter fault, the buzzer alarm.
AC bypass section	Input over current protection	Bypass input section having an input over current protection function (≥ 10 A), non-self-recovery. The need to manually replace the fuse before working again.

Environment
Parameter	Min.	Typical	Max.	Unit	Note
Operating ambient temperature	- 20		+5 5	° C
Inverter temperature storage environment	- 25		+70	° C
Relative humidity	0		95	%	Relative humidity, dew does not pour
Altitude			15 00	m	Meet derating requirementsGB3859.2-93
Cooling	Natural air. With the power of wind turbines internal temperature rises enhanced, cold heat.
Work Environment	No conductive dust explosion, corrosion and destruction of gases and vapors, no severe vibration and shock

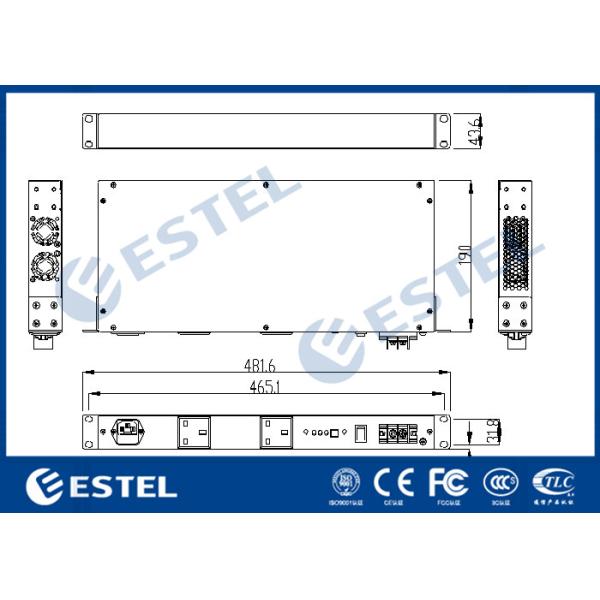

5. Product Dimensions

DC / AC 1000VA Sine Wave Inverter Flush Mounting Power Supply AC Bypass Input

6. Product Pictures

DC / AC 1000VA Sine Wave Inverter Flush Mounting Power Supply AC Bypass Input
